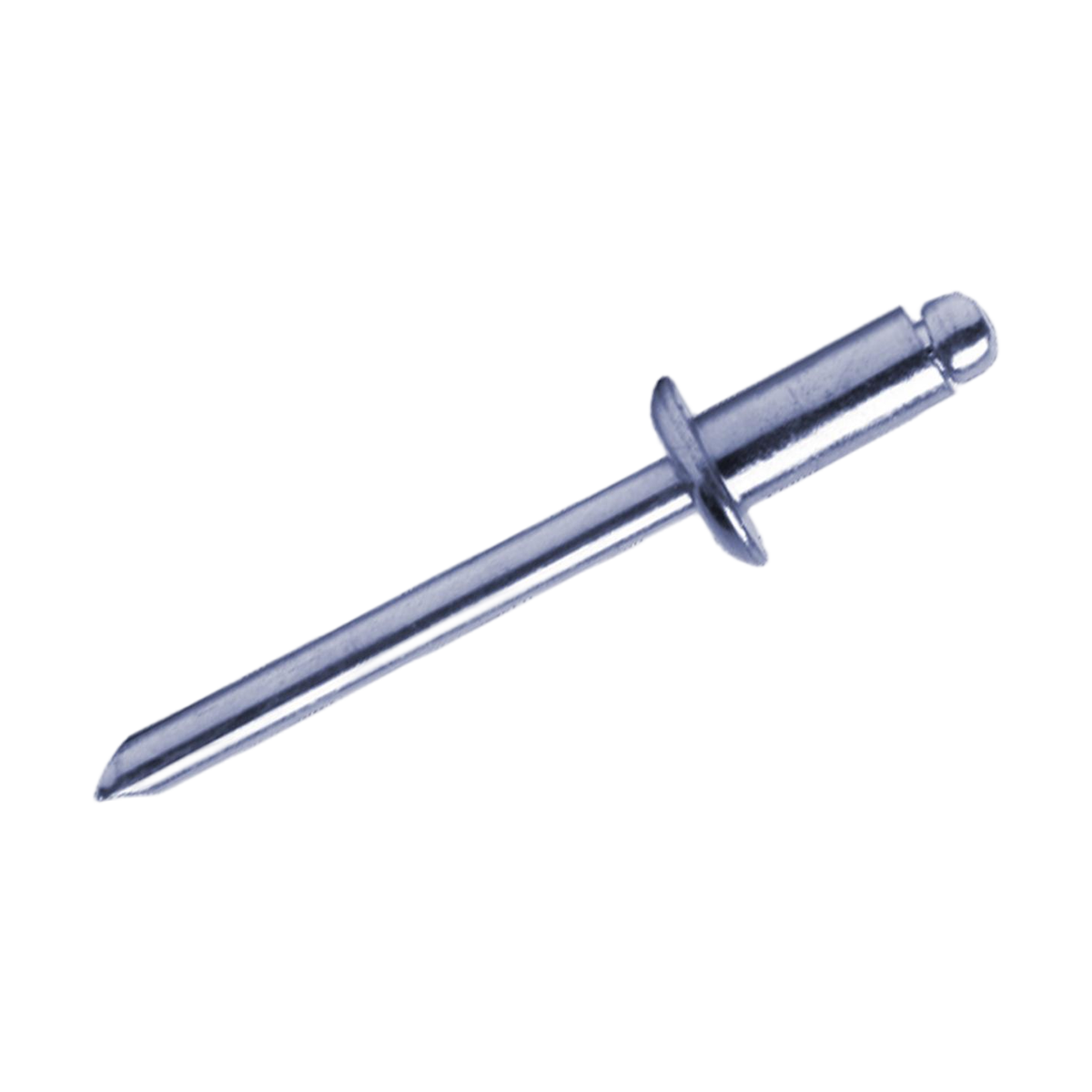

What are the common specifications of open-end blind rivets?

Industry

August 17, 2025

Length specifications：Standard lengths include 6mm, 8mm, 8.5mm, 9.5mm, 11mm, 12mm, 12.5mm, 13mm, 14.5mm, 15.5mm, 16mm, 18mm, and 20mm. Additionally, the market also offers extended lengths such as 22mm, 25mm, 30mm, 40mm, 50mm, and 60mm.

Nominal diameter of the rivet body

It is divided into 6 standard series: 2.4mm, 3.2mm, 4mm, 4.8mm, 5mm, and 6.4mm.

Head shape & performance grade

Head shape: There are two main types—countersunk head and pan head.

Performance grade: Classified into 15 grades, including 06, 08, 10, 11, 12, etc. Among these, Grade 10 and Grade 11 open-end blind rivets are the most widely utilized in industrial applications.
